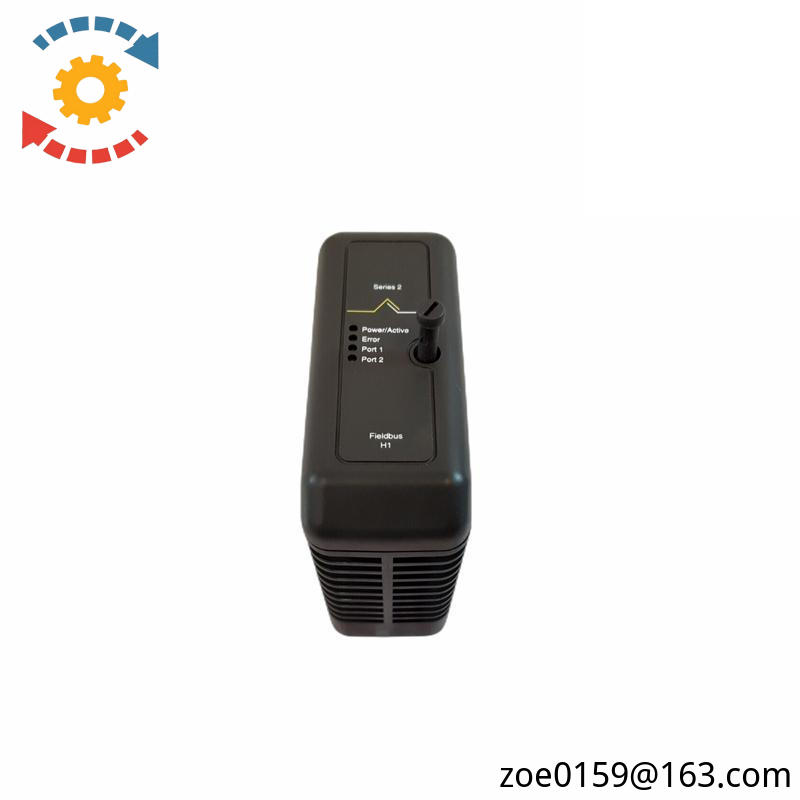

Emerson KJ3002X1-BE1 | Output Module for Precision Control Systems

Model:KJ3002X1-BE1

Series:DeltaV

Type:Output Module

LocalBus Power Rating:+5 VDC @ 1.4 A

Bussed Field Power Rating:24 VDC @ 300 mA

Field Circuit Rating:24 VDC @ 32 mA

Analog Output Channels:8

Output Signal Range:4-20 mA

Communication Protocol:HART

Weight:0.2 kg

Dimensions:W x L x H (mm)

:96 x 100 x 114

Operating Temperature Range:-25°C to 60°C

Storage Temperature Range:-40°C to 85°C

Certifications:[“CE”,”UL”,”CSA”]

    The Emerson KJ3002X1-BE1 Output Module is engineered to meet the stringent demands of industrial automation environments, delivering exceptional performance with its robust design and advanced features.

    Featuring a compact size and a wide operating temperature range, this module ensures reliable operation under diverse conditions, enhancing system uptime and efficiency.

    Equipped with 8-channel analog outputs, each capable of delivering 4-20 mA signals, the module supports precise control over various processes, making it ideal for applications requiring high accuracy and responsiveness.

    Integrated with HART communication protocol, the KJ3002X1-BE1 facilitates easy setup and maintenance, allowing for seamless data exchange between the module and the host system.

    Designed with environmental considerations in mind, the module is not only durable but also energy-efficient, contributing to sustainable industrial operations without compromising on performance.

    Compliant with international safety standards including CE, UL, and CSA, this output module ensures operational safety and compliance across global markets.
